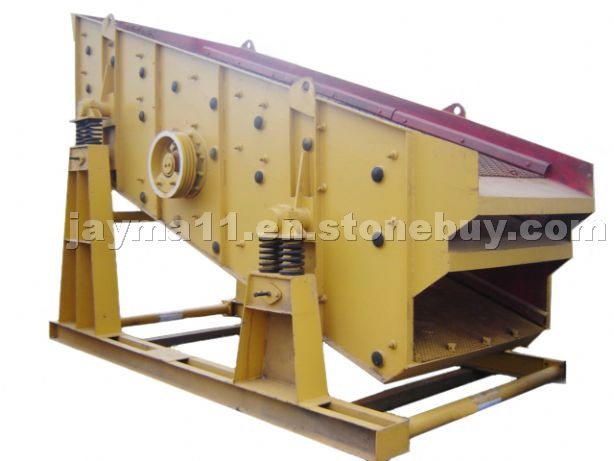

Vibrating screen

• Place of Origin:

   China

• Type:

  Quarrying and Earthmoving Machinery

• Genre:

  Machinery & Equipment

• sCode:

  STPR1426597

• Place of Origin:

  China
• Specifications:
  Name Model Deck No. Capacity(t/h) Max. Feed Size(mm) Power(kW) Weight(kg)
  Vibrating Screen 1YKJ1230 1 18 200 5.5 2,800
  Vibrating Screen 2YKJ1230 2 35 200 7.5 3,100
  Vibrating Screen 3YKJ1230 3 45 200 7.5 3,500
  Vibrating Screen 1YKJ1545 1 50 200 11 4,100
  Vibrating Screen 2YKJ1545 2 65 200 15 4,500
  Vibrating Screen 3YKJ1545 3 65 200 15 4,800
  Vibrating Screen 1YKJ1650 1 75 200 15 5,400
  Vibrating Screen 2YKJ1650 2 80 200 15 5,600
  Vibrating Screen 3YKJ1650 3 80 200 18.5 5,900
  Vibrating Screen 1YKJ1854 1 90 200 15 6300
  Vibrating Screen 2YKJ1854 2 90 200 22 7400
  Vibrating Screen 3YKJ1854 3 90 200 22 8500
  Vibrating Screen 1YKJ1860 1 100 200 18.5 7500
  Vibrating Screen 2YKJ1860 2 100 200 22 8700
  Vibrating Screen 3YKJ1860 3 100 200 22 9500
  Vibrating Screen 1YKJ2160 1 80~360 200 30 7000
  Vibrating Screen 2YKJ2160 2 80~360 200 30 7,850
  Vibrating Screen 3YKJ2160 3 80~360 200 30 9,850
  Vibrating Screen 1YKJ2460 1 100~460 200 22 6,200
  Vibrating Screen 2YKJ2460 2 100~460 200 30 9,200
  Vibrating Screen 3YKJ2460 3 100~460 200 30 11,500
  The vibrating screen is a kind of sieving equipment of international advanced level, developed by our company on the basis of carrying on the advantages of traditional screens and absorbing the outstanding technology from abroad.
  It is widely used for grading and screening materials in the following field: minerals, quarry, building materials, water conservancy and hydropower, transportation, chemical industry, smelting and so on.
  Features and benefits: It features long flowing line, many screening specifications, strong violent force, high screening efficiency, small vibrating noises, firm and durable construction, convenient maintenance and safe operation.
  Operating principle: It adjusts the amplitude by tube-shaped violent vibration screen of eccentricshaft and eccentric blocks. The body moves like a circle, in order to make the materials screened.
